BRC Fence

Decoration Function

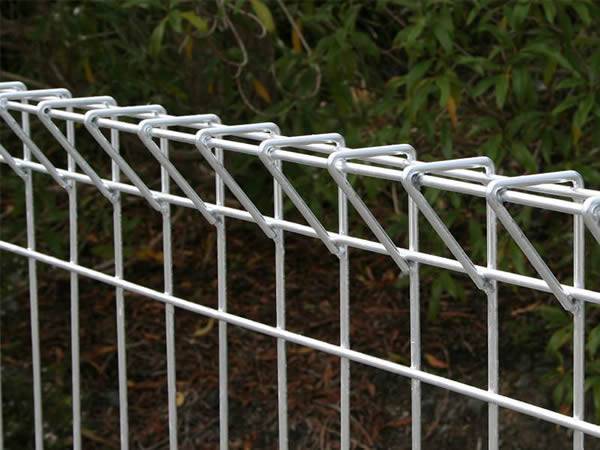

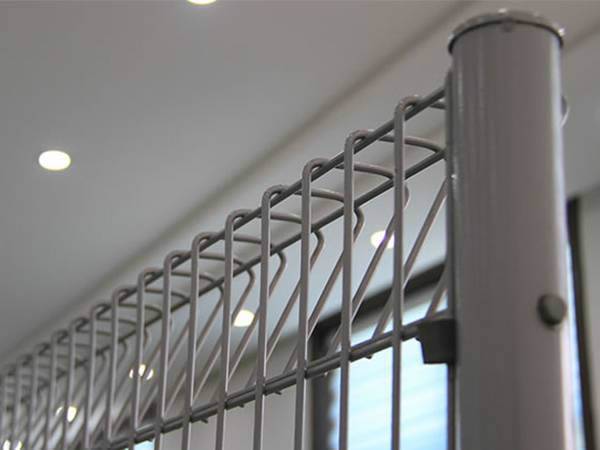

BRC fence, also can be call roll top fence. It is a special welded wire mesh fence with a triangular roll top structure at its top and bottom. In fact, the name of "roll top fence" is derived from this.

Brc fence is manufactured by bending the top and bottom on the basis of normal welded wire mesh fence. Except for that, brc fence adopts the steel wires with larger diameter to resist external shocks. And the precise mesh structure guarantees a good view so that you can see whatever you want to see even at night.

Currently, roll top fence is widely used in the regions of Singapore, Japan, South Korea and Southeast Asia. High-strength steel wires and a unique bending edges ensure its high safety; in addition, the structure on the top and bottom makes it more soft and beautiful to attract people’s attention. Therefore, brc fences are mainly used as security fences or barriers in parking lots, airports, swimming pools, residential areas and as decoration facilities in gardens, parks and zoos. We are committed to making it an ideal choice for those who want to have a practical and beautiful fence.

Specification

• Material: low carbon steel wire Q195, Q235.
• Surface treatment
• Hot dipped galvanized (505 g/m²).
• Electro galvanized (zinc coating: 8–12 g/m²) then PVC/PE coated (thickness: 0.8–1.2 mm).
• Electro galvanized (zinc coating: 8–12 g/m²) then polyester powder coating (thickness: 0.1 mm).
• Wire diameter: 3.0–6.0 mm
• Height (mm): 900, 1200, 1500, 1800, 2100, 2400.
• Width (mm): 1000, 1500, 2000, 2400, 2500, 3000.
• Mesh size (mm): 50 × 100, 50 × 150, 50 × 200, 75 × 200, 75 × 300, 100 × 200, 100 × 300.
• Color: available any RAL. But green RAL 6005, black RAL 9005, white RAL 9010, gray RAL 7030, red RAL 3020, yellow RAL 1023, blue RAL 5017 are common.

Accessories: post and clamp system

Post

• Material: square steel pipe, round steel pipe.
• Surface treatment: electric galvanized, hot dipped galvanized, polyester powder coating.
• Thickness: 1.5, 2.0, 2.5 mm.
• Height: according to the panel height.
• Type: round post, square post.
• Dimension
• Round post diameter: 48, 60 mm.
• Square post size: 50 × 50, 60 × 60 mm.

Other accessories

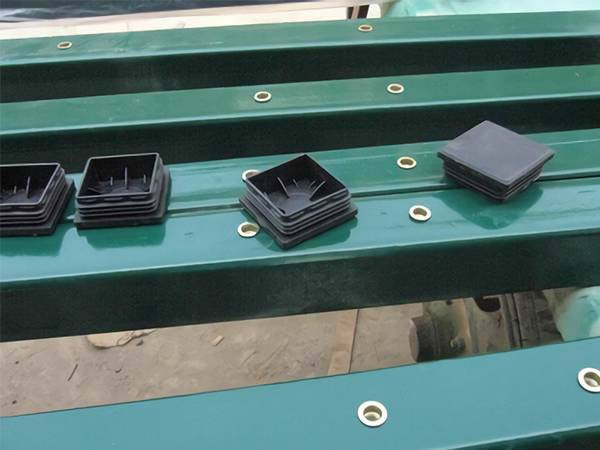

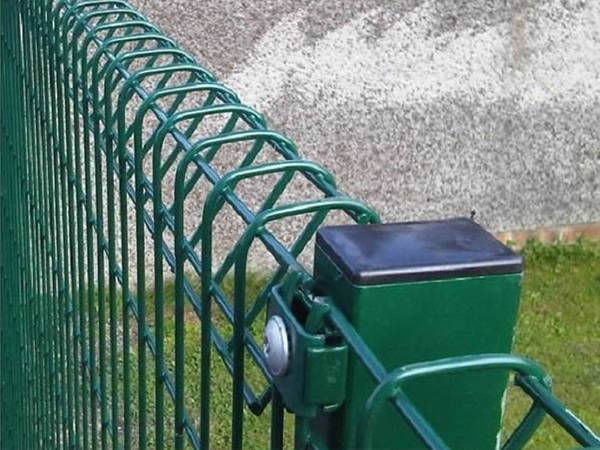

Square post cap

Metal V clamp for connecting round post and brc fence.

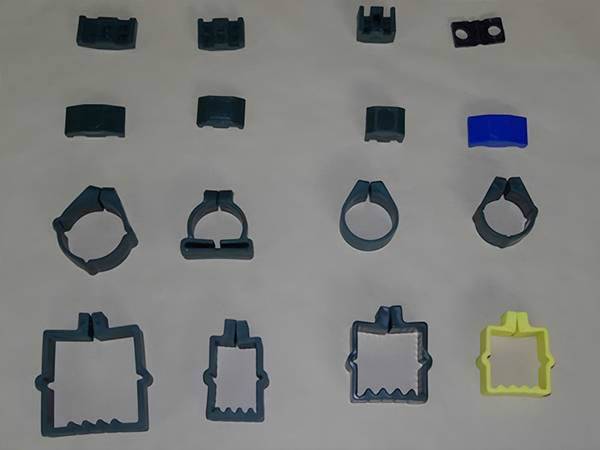

Clips are connection parts of post and brc fence.

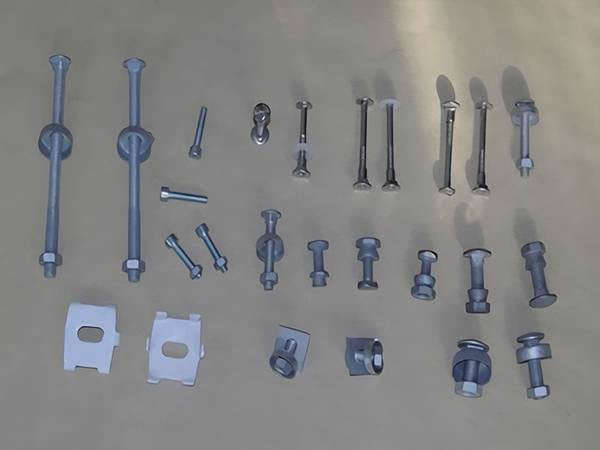

Brc fence screw and nut

Packaging

• Fence panel: metal/wooden pallet + bundle belt + plastic film. Here we place the BRC fence panels on the metal pallet one by one in order of face up and face down.
• Fence post: they are also placed in the metal pallet according to the above steps. Each post also be individually packaged with plastic bags.
• Fence accessories: they will be placed in carton box.

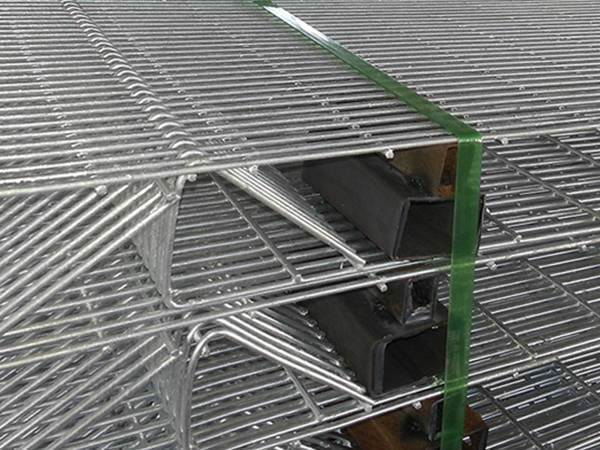

Posts are between of the interval of brc fence panels

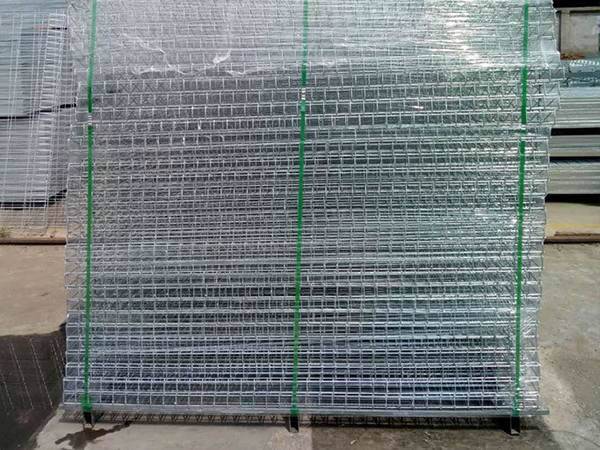

Brc fence panels are tightly packaged to prevent damage during transit.

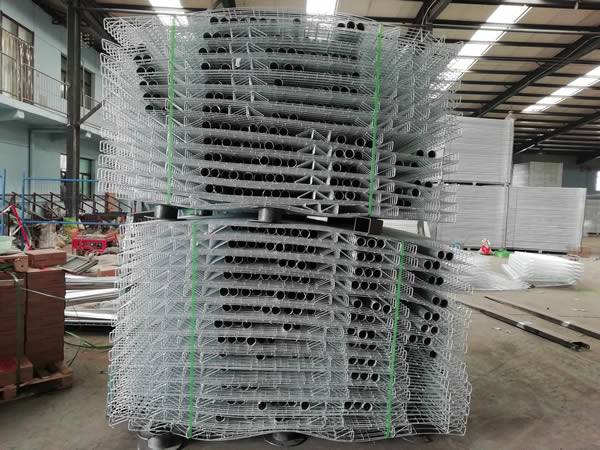

The specific way of placing a lot of brc fence panels on the steel pallet.

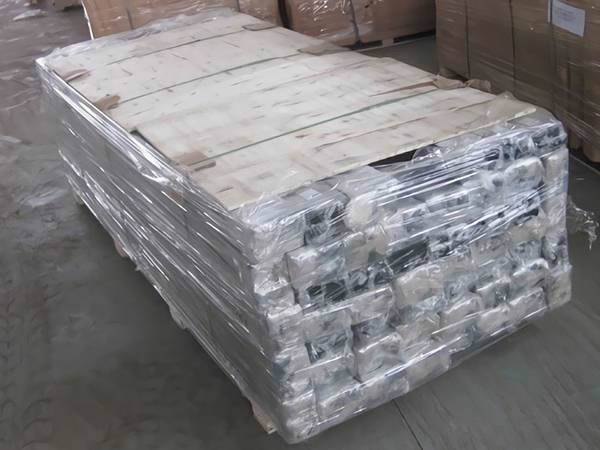

The post also wrapped tightly by plastic film, pallet and bundle belts and other packaging material.

Installation

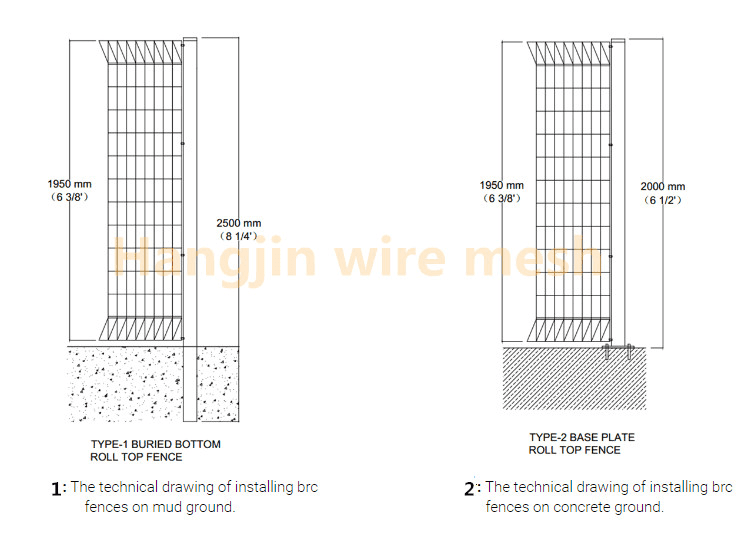

If the ground is muddy, you can directly buried the post into the ground, generally speaking, the depth of 40–50 cm is enough to stabilize the post, that is: the post need to be higher than brc fence panels at least 40–50 cm.

Next is to place the brc mesh panels between the posts and use the corresponding accessories to fix it. Here, it is necessary to ensure that there is no gap between the brc fence panel and post or only a very small gap, otherwise it will affect the use of accessories.

Finally install the rain cap on the top of the post. If you find it’s hard to install the rain cap because of the height of brc fence, you need to install the rain cap before fixing the posts and panels. If the rain cap is made of metal material and it has already welded on the post, you can do nothing.

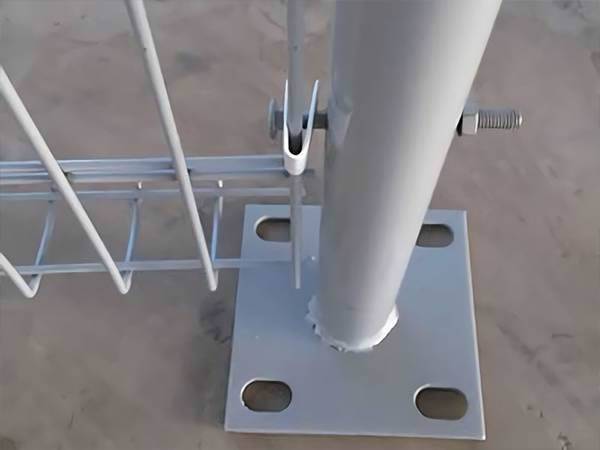

In addition, if the ground is not mud but concrete, you can weld the flange at the bottom of the post and use M10 anchor bolts to fix the post and flange.

Application

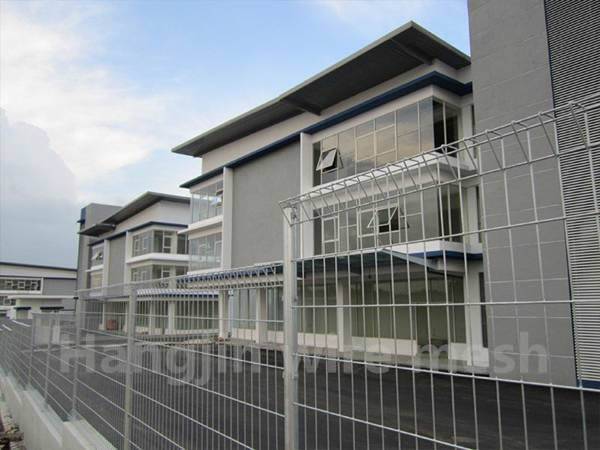

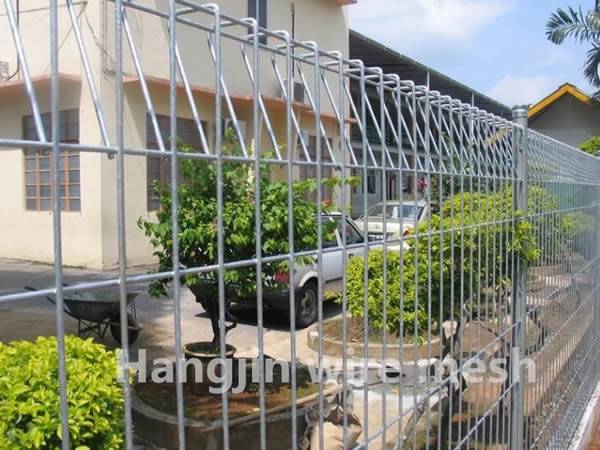

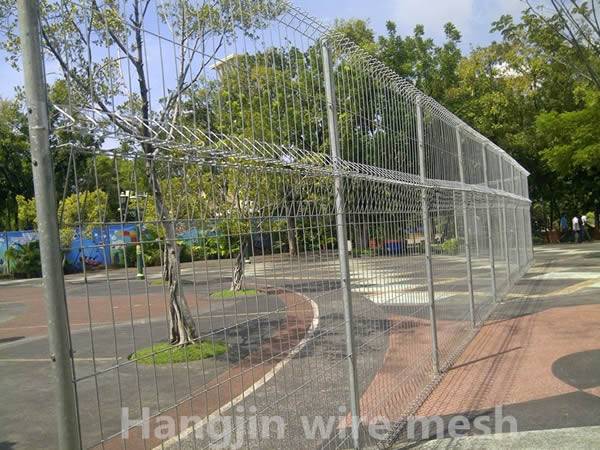

Generally speaking, BRC fence is mainly used as security fences or barriers, partitions and decorative facilities to achieve protection and decoration functions.

In addition, it also mainly used for highways, railways, stairs, bridges and balconies in outdoor and indoor areas, such as:

• Garden.
• Farm.
• Port.

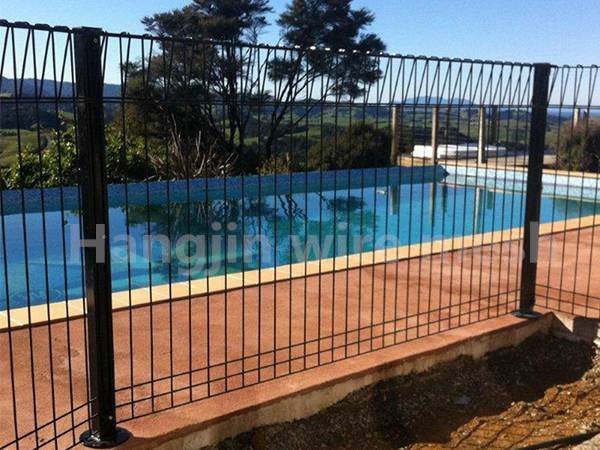

• Swimming pool.
• Parking lot.
• Airport.
• School.
• Residential.
• Pedestrian area.
• Supermarket.
• Park.
• Lake.
• Zoo.
• Courtyard.
• Hotel.
• Restaurant.
• Stadium.
• Playground.
