Razor Barbed Wire
Our Razor Barbed Wire products contains Single Coil Razor Barbed Wire, Concertina Razor Wire (with clips), Welded Razor Wire Mesh, Triple Strand Concertina Razor Wire, Razor Wire Rapid Depolyment System.

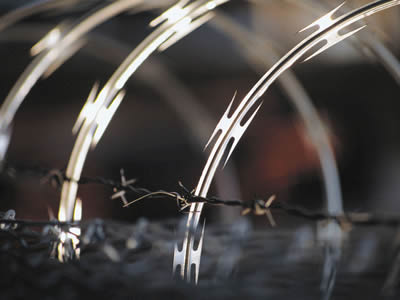

Razor Barbed Wire, also called barbed tape or concertina wire. It's a metal strips with sharp edges which purpose is to prevent passage by humans. Razor Barbed Wire is much sharper than the standard barbed wire, the points are very sharp and made to rip and grab onto clothing and flesh.
The multiple blades of a razor wire fence are designed to inflict serious cuts on anyone attempting to climb through and therefore have a strong psychological deterrent effect. In many high-security applications, barbed tape supplanted barbed wire, which could be circumvented relatively quickly by humans with tools, while penetrating razor wire barriers without tools is very slow and difficult, giving security forces more time to respond. Razor wire contains a core hardened steel strip that is often under tension, so if cut, the recoil could cause the wire to unfurl and lash out, striking the cutter.
Size:
| Reference Number | Blade Style | Thickness | Wire Dia | Barb Length |
Barb Width |
Barb spacing |
||||
| BTO-12 |  |
0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 | ||||
| BTO-15 |  |
0.5±0.05 | 2.5±0.1 | 15±1 | 15±1 | 33±1 | ||||
| BTO-22 |  |
0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 | ||||
| BTO-25 |  |
0.5±0.05 | 2.5±0.1 | 25±1 | 16±1 | 40±1 | ||||
| BTO-30 |  |
0.5±0.05 | 2.5±0.1 | 30±1 | 18±1 | 45±1 | ||||
| CBT-60 |  |
0.6±0.05 | 2.5±0.1 | 60±2 | 32±1 | 100±2 | ||||
| CBT-65 |  |
0.6±0.05 | 2.5±0.1 | 65±2 | 21±1 | 100±2 | ||||
| Outside Diameter | No. of Loops | Standard Length per Coil | Type | Notes | ||||||
| 450mm | 33 | 8M | CBT-65 | Single coil | ||||||
| 500mm | 41 | 10M | CBT-65 | Single coil | ||||||
| 700mm | 41 | 10M | CBT-65 | Single coil | ||||||
| 960mm | 53 | 13M | CBT-65 | Single coil | ||||||
| 500mm | 102 | 16M | BTO-10.15.22 | Cross type | ||||||
| 600mm | 86 | 14M | BTO-10.15.22 | Cross type | ||||||
| 700mm | 72 | 12M | BTO-10.15.22 | Cross type | ||||||
| 800mm | 64 | 10M | BTO-10.15.22 | Cross type | ||||||
| 960mm | 52 | 9M | BTO-10.15.22 | Cross type | ||||||

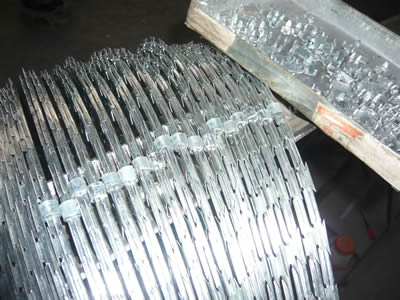

Process: The Razor Barbed Wire is consisted by the core wire and blades. Galvanized steel plate or stainless steel plate punched into certain forms then attached to the core wire in sharp angle to form the blades.
Features: It has the characteristics like good deterrence effect, beautiful appearance, easily constructed, practical, corrosion resistance, anti-ageing and durable.The products offer good frightening result, sharp blades coming in the form of concertina by buckles bring very good result of frightening and stopping to the aggressive perimeter intruders.

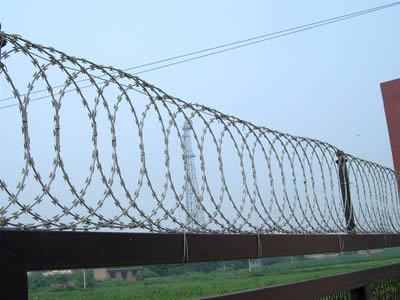

Application: Widely used in military field, prisons, detention houses, government buildings and other national security facilities. Also fencing of residences, villa wall and windows, express way, railway, national border lines, etc.
