Double Wire Fence

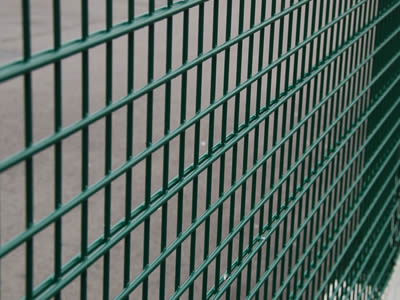

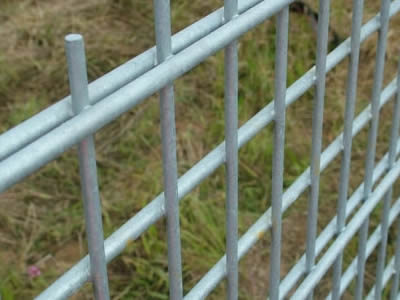

Double wire fencing uses high quality low carbon stainless steel wire as raw material. It is welded with one vertical wire and two horizontal wires; this can be strong enough, compared to the normal welded fence panel. The wire diameters are available, such as 6mm×2+5mm×1, 8mm×2+6mm×1. It obtains high strong powers to resist the construction.

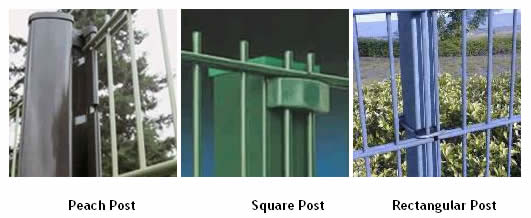

Post: This System usually choose Square Post (50×50mm, 60×60mm), Rectangular Post (80×60×2. 5mm, 120×60×3mm) and peach post with the high strength and so on. With plastic caps or Roofing rain hat. The finished surface usually is Galvanized and Powder coating, or alternatively.

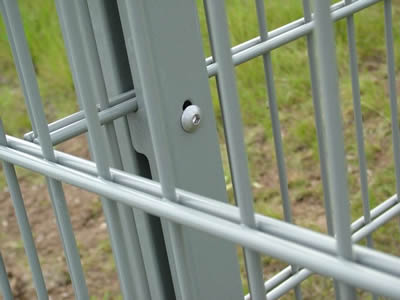

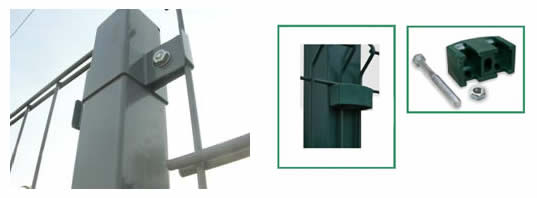

Fastenings: The Panels and posts are jointed together with bolts or rivets, using the steel flat bar or special steel clamps, all nuts are self-locking. This also can be designed as the special clients’ requests.

Double Wire Fence Specifications: The special specifications are available on request.

Double Wire Fence
Height × Width Panel mm Mesh Size mm Wire Diameter Post of Height mm
Wire Dia mm Wire Dia mm Wire Dia mm
630×2500 50×200 8×2 + 6 6×2 + 5 6×2 + 4 1100
830×2500 50×200 8×2 + 6 6×2 + 5 6×2 + 4 1300
1030×2500 50×200 8×2 + 6 6×2 + 5 6×2 + 4 1500
1230×2500 50×200 8×2 + 6 6×2 + 5 6×2 + 4 1700
1430×2500 50×200 8×2 + 6 6×2 + 5 6×2 + 4 1900
1630×2500 50×200 8×2 + 6 6×2 + 5 6×2 + 4 2100
1830×2500 50×200 8×2 + 6 6×2 + 5 6×2 + 4 2400
2030×2500 50×200 8×2 + 6 6×2 + 5 6×2 + 4 2600
2230×2500 50×200 8×2 + 6 6×2 + 5 6×2 + 4 2800
2430×2500 50×200 8×2 + 6 6×2 + 5 6×2 + 4 3000

Finish treatment: Galvanized / Polyester coated green, other standard colors are available on request. It can resist the corrosive and ultraviolet radiation very strongly, and it can keep original color and long-time using.

Application:

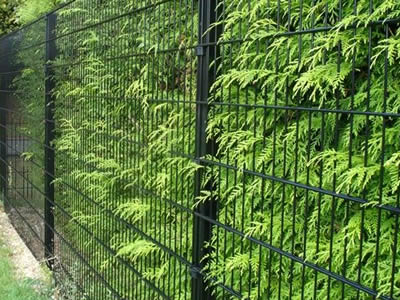

  • Double wire fencing has the features of grid structure, beauty and practical, landscaping. In addition, double wire fencing is easy for plants to climb and widely used in parks and living areas.
  • Because of the double wire fencing features of easy transportation and installing without the limitations of special terrain. It is adjust to mountain, hillside and winding zones. Double wire fencing as professional fence is used in airports and military bases. While adding elbow, razor wire, barbed wire and other security accessories, it can protect the enhance sites further more.

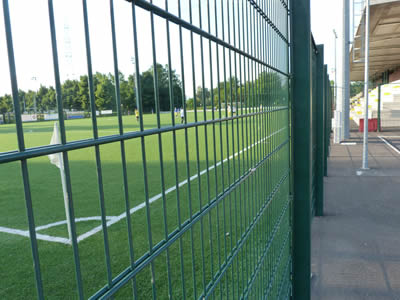

  • The double wire fencing price is under the medium level, it is widely used in industrial sites, playing fields, entertainment, schools and nurseries as security fencing.
