Curvy Welded Fence

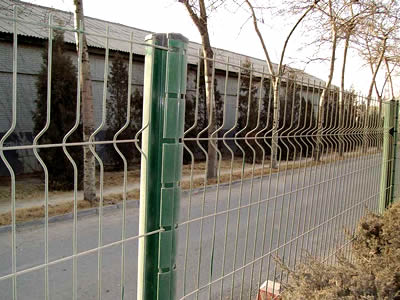

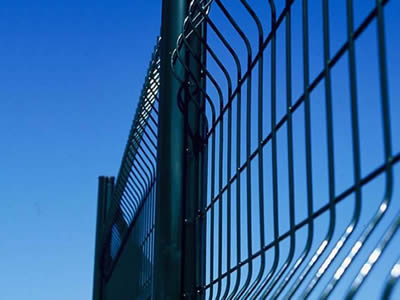

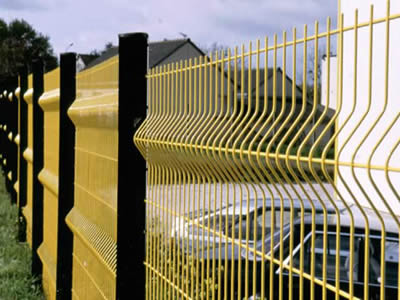

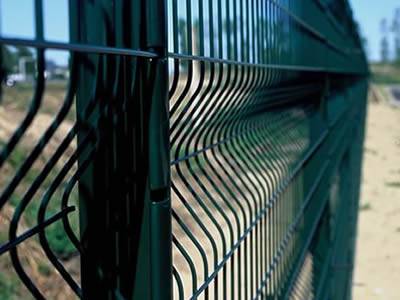

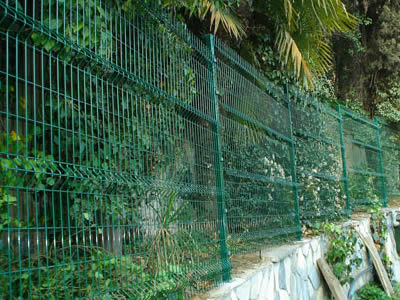

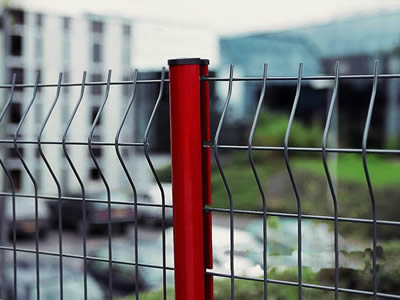

Curvy welded fence is a combination of wires in the horizontal and vertical direction welded at their junctions to provide a rigid wire mesh fence. A number of differing designs are manufactured from 3mm to 8mm wire at varying spacings for economy or strength. Styles with minimum horizontal bars widely spaced are used to restrict or deny climbing. Most curvy welded fence is supplied in a "hot galvanised" finish, due to their exposure to the elements and particularly salt laden atmospheres. However, for a more pleasing effect they can be powder coated in a range of popular colours.

Material: low carbon steel wire, galvanized wire and stainless steel wire.

Characteristics: Woven and welded, anti-corrosion, corrosion-resisting, durable, easy to withstand outdoor exposure, etc.

Forms of corrosion resistance: Electric galvanizing, hot-dip galvanizing, PVC spraying and PVC coated.

Curvy Welded Fence Advantages:

  • Excellent corrosion resistance, anti-aging and anti-aging property.
  • Sunshine resistance and weather-proof.
  • With rectangular mesh and horizontal reinforcement guarantee a very high level of rigidity.
  • Have four horizontal bending rebar therefore it will strengthen the fence network.
  • Not only has a beautiful outlook but also has a durable structure.
  • Can withstand outdoor exposure.
  • Easy and quick to transport and install.
  • Terrain adaptability, the adjacent column with undulating ground can be adjusted upwards or downwards.
  • Bright, reflective colors stand out in day or night
  • Easy transportation, save time and labor cost.

Curvy Welded Fence Applications:

  • Mainly used in highway and railway bridge on both sides of the protection zone.
  • Airports, ports, terminals security.
  • Municipal building in the park, lawn, zoo, pool lake, roads, and residential isolation.
  • Guest Houses, hotels, supermarkets and entertainment protective.

Specifications of Curvy Welded Fence

Height Above
Ground (m)
Panel Size
(mm)
Mesh Size
(mm)
Numbers of
Beams
Post Diameter
(mm)
1.2 1230x2500 50x100/50x200 2 50x70
1.8 1830x2500 50x100/50x200 3 50x70
2.0 2030x2500 50x100/50x200 4 70x100
We can also manufacture the weld mesh fencing as per your dimension of the specification
